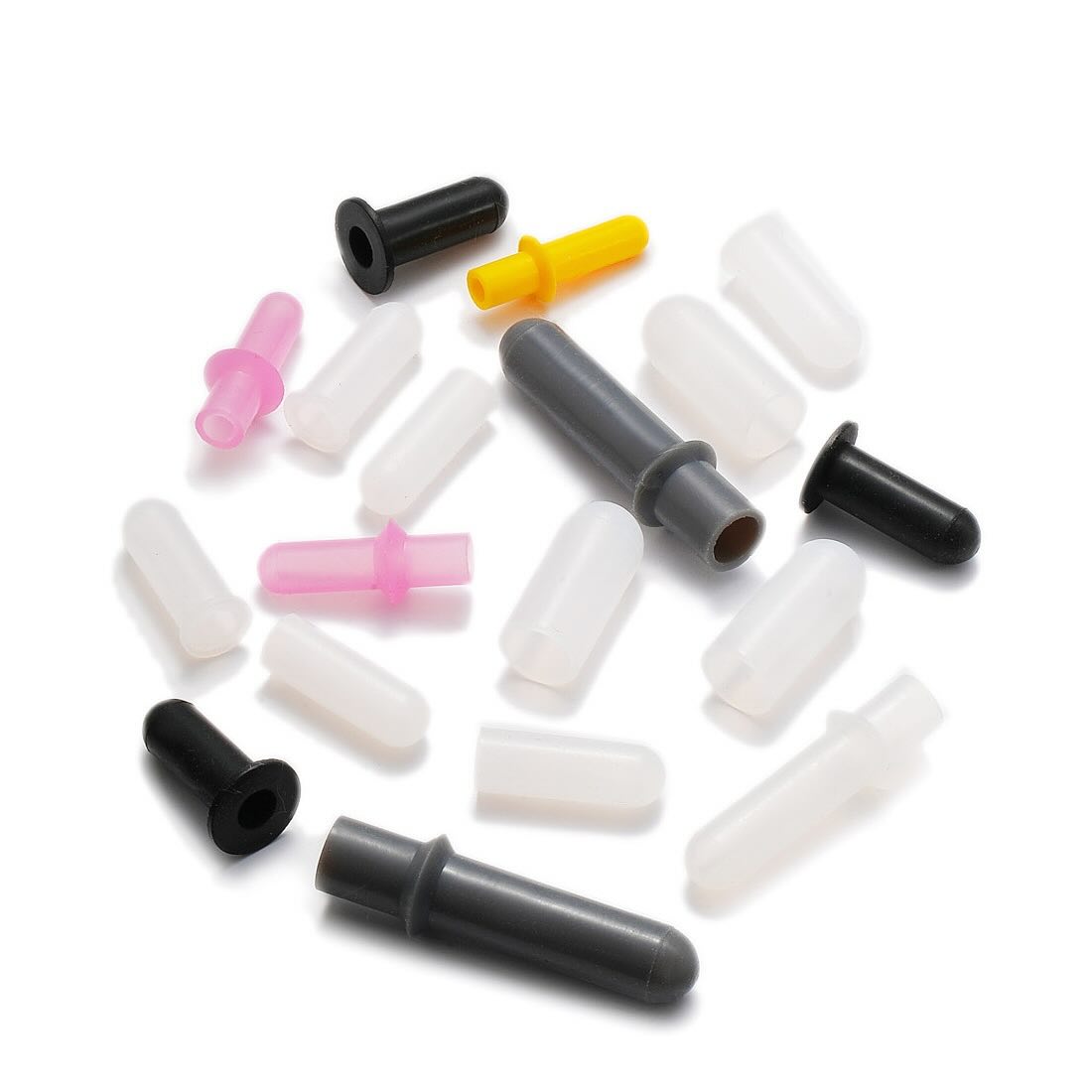

How to Choose the Right Size Silicone Masking Cap
Share
When it comes to powder coating or other high-temp coating processes, selecting the right size silicone cap can make or break the quality of your finish.
An ill-fitting cap can lead to coating leakage, poor seals, and even product rework. Whether you’re masking studs, rods, bolts, or tube ends, knowing how to size your silicone masking caps properly is key.
In this post, we’ll break down exactly how to choose the right size silicone end cap for your application — and avoid costly coating mistakes.
Applications for Masking Caps
Silicone caps are a go-to solution for protecting external features during finishing processes where precision is key.
Their heat resistance, flexibility, and reusability make them ideal for a wide range of industrial applications.
Coating & Finishing Processes
Masking caps are commonly used in:
- Powder Coating – Protect threaded studs, rod ends, and tube openings from overspray and bridging.
- E-Coating – Prevent electrical current from passing through unwanted contact points, like exposed pins or terminals.
- Anodizing & Plating – Shield components from corrosive chemical baths while maintaining clean contact areas.
- Wet Paint & Spray Coating – Cover exposed ends to ensure clean lines and avoid excess paint buildup.
Each of these processes can damage threads, interfere with grounding, or compromise assembly tolerances if areas aren’t masked properly.
Types of Parts Masked with Caps
Silicone end caps are best suited for covering external features that protrude from a part. Common targets include:
- Threaded studs and bolts
- Unthreaded posts, pins, and shafts
- Tube ends and pipe openings
- Hex heads or flanged fasteners
- Electrical connectors or terminals
In some applications, rubber caps may also be used, but silicone remains the preferred option for high-temperature and powder coating environments due to its superior heat resistance.
How to Size a Silicone Masking Cap
Choosing the correct size silicone cap is all about achieving a snug, secure fit that won’t fall off during processing—or worse, allow coating to leak underneath.
The key is undersizing the cap relative to the outside diameter (OD) of the part you’re masking.
Undersizing Rule of Thumb
To ensure a tight seal, the inside diameter (ID) of the masking cap should be 5% to 10% smaller than the outside diameter (OD) of the stud, pin, or tube being masked.
This range accounts for silicone’s natural flexibility while still maintaining the grip needed to stay in place during coating and curing.
Example: 5% Undersize for a 0.5” Diameter Bolt
- Bolt OD: 0.500 in (12.70 mm)
- 5% Undersize: 0.500 × 0.95 = 0.475 in (12.07 mm)
- Recommended cap ID: 0.475 in (12.07 mm)
Finally: Clean, Rotate, Reuse, Replace
Silicone masking caps can typically be reused several times, depending on your coating process, but only if they’re kept clean and in good condition. To ensure optimal performance and a long lifespan, it’s important to inspect and clean them regularly.
Be sure to:
- Inspecting plugs and caps for wear
- Rotating used and unused caps to prevent overuse of the same item
- Discard any rubber cap or silicone cap that no longer fits snugly
These practices apply directly to our silicone caps as well as silicone plugs. A simple plug-check process ensures that worn-out masks are removed from circulation and replaced with fresh inventory, maintaining masking quality and reducing defects.
